SVEN Reserve Home-1000
SVEN Reserve Home-1000
Short product description:
- Continuous action with prolonged back-up time
- Regular sinusoidal output signal
- Microprocessor control
- Intellectual charger for connected external batteries (stora...
SVEN Pro 400
SVEN Pro 600
SVEN Pro 650 (LCD, USB)
SVEN Pro 800
SVEN Pro 1000 (USB)
SVEN Pro 1500 (LCD, USB)
SVEN UP-L800
SVEN UP-L1000E
SVEN RT-500
SVEN RT-1000
-
FEATURES
-
SPECIFICATIONS
-
DESCRIPTION
-
UNBOXING VIDEO
-
SUPPORT
- Continuous action with prolonged back-up time
- Regular sinusoidal output signal
- Microprocessor control
- Intellectual charger for connected external batteries (storage batteries) with the “training” mode of batteries
- Protection against short circuit, overvoltage or undervoltage of the mains and overload
- IP-20 ingress protection
- Self-diagnosis after switching on

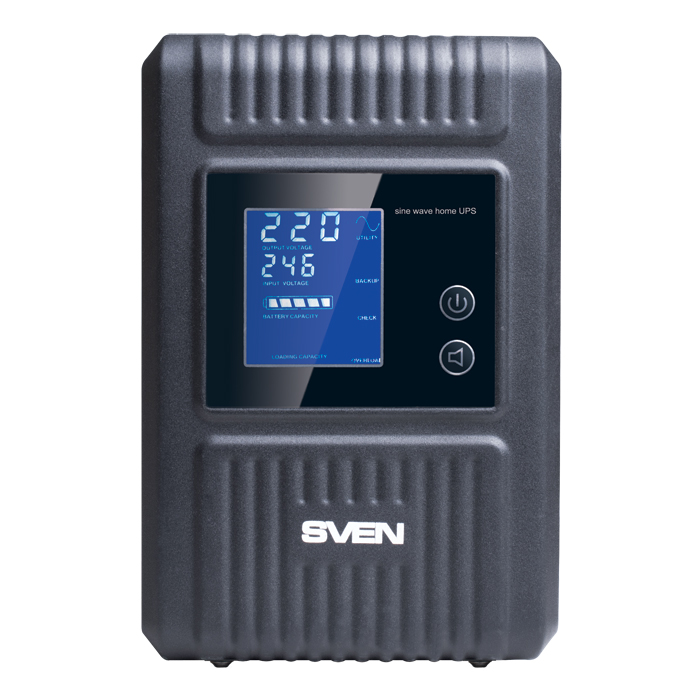

- Indication of operation modes on LCD display
- Mode switchover time ≤ 5 msec
- Built-in line regulator
- Automatic start function
- Low noise level
| UPS type | line-interactive of continuous action with long backup time |
| Built-in AVR | available |
| Total power, VА | 1000 |
| Active power, W | 600 |
| Type of load | household and industrial equipment |
| Maximum load, W | 600 |
| Input voltage level, V | ~150 – 275 |
| Output voltage level, V | ~220 ± 10 % |
| Output voltage waveform | regular sinusoidal signal |
| Input frequency, Hz | 50 |
| Output frequency, Hz | 50 |
| Number of phases | 1 |

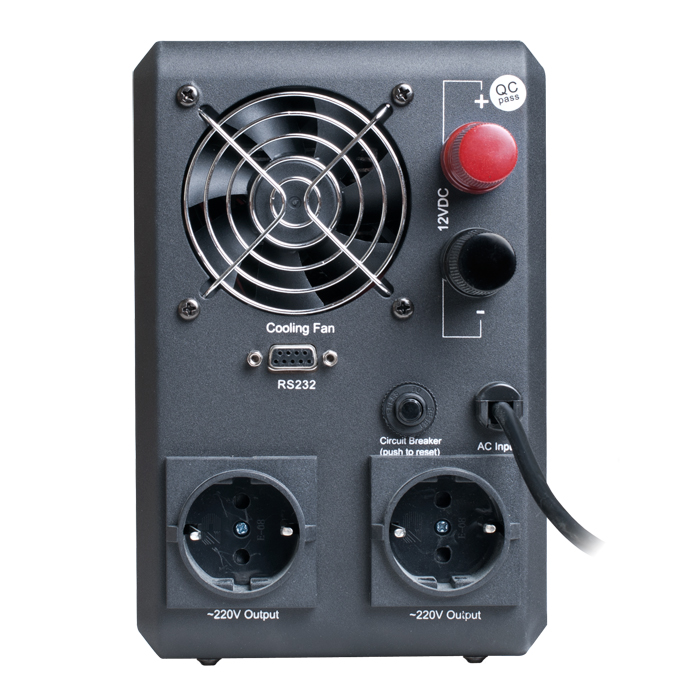

| Input terminals | terminals for battery connection |
| Input socket | 1 × CEE 7/7 |
| Output sockets | 2 × CEE 7/4 |
| Allowable overload of the rated power, % | ≤ 110 |
| Overload protection acting, % | 120 |
| Protection | against high/low voltage, overload, short circuit and overvoltage |
| Beeps | low battery charge, overload, error |
| Accumulator type | maintenance-free sealed lead-acid batteries (not included) |
| Typical switching time, ms | < 5 |
| Cooling type | convective; by fan |
| Indication | operation modes on LCD display |
| Operation mode | continuous action with long backup time |
| Noise level, dB | 45 |
| Environmental temperature, °С | from -5 to +40 |
| Relative humidity, % | 10-90, without condensation |
| Efficiency, % | 65 |
| Case material | metal |
| Dimensions (W × H × D), mm | 140 × 214 × 367 |
| Weight, kg | 9.3 |
| Color | black |
| Life time | 5 years |
Other items
News
SVEN VR-F600 AUTOMATIC VOLTAGE REGULATOR — FULL POWER SAFETY CONFIDENCE
SVEN automatic voltage regulators range is well known to users seeking for truly high-quality and reliable protection of electrical appliances as comfortable as possible and without excessive costs.
Details >>
SVEN SF-10E-16 EXTENSION SURGE PROTECTOR — SAFE CONNECTION OF UP TO TEN DEVICES
The main thing that is interesting about SVEN SF-10E-16 is, undoubtedly, the safe and convenient connection of up to 10 devices at once, and with a solid total power.
Details >>
SVEN MC-50 ACOUSTIC HI-FI SYSTEM — PEOPLE'S FLAGSHIP FROM THE LEGENDARY LINE
For decades, multimedia 2.0 acoustics from our company have enabled a wide range of music lovers to experience real Hi-Fi. Our speakers have always been appreciated not only for their good sound, but also for their affordable price.
Details >>SVEN RESERVE HOME uninterrupted power supplies developed and produced by SVEN Company are the ideal solution for the uninterrupted power supply for heating systems, intellectual fire-control units and security systems, automation and refrigeration systems, etc. in conditions of low quality level of power supply or in case of its complete absence.
They are designed for equipment, which is critical to the input current form: gas boilers, refrigeration equipment, devices with electric motors, compressors, transformers, etc., where UPS with clear output sinusoid is required.
SVEN RESERVE HOME line-interactive uninterrupted power supplies with a proper sinusoid in combination with batteries SVEN SV12500 and SVEN SV121000 are the optimal and universal choice to create the uninterrupted power supply system based on the price, consumer properties, coefficient of efficiency and battery service life.
Notice! Batteries are not included.
