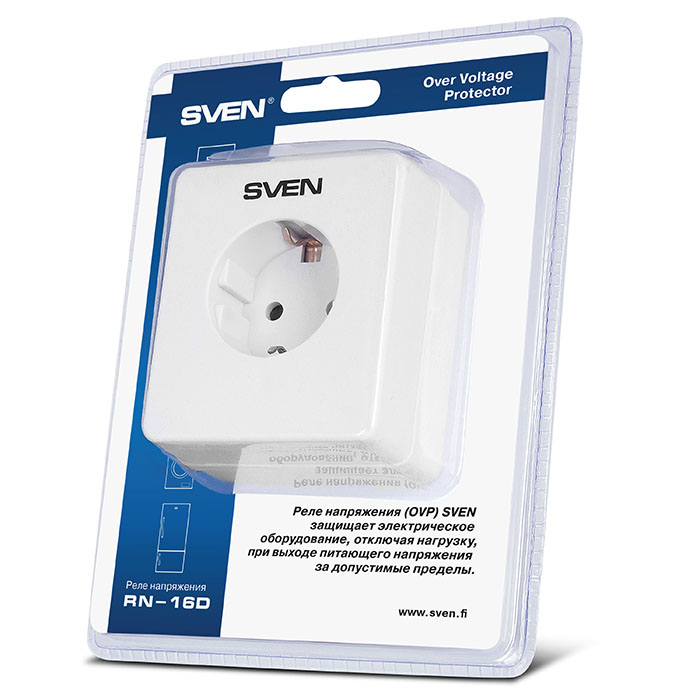

SVEN RN-16D

Voltage relay with LCD, 3300W

AN: SV-016586

SVEN RN-16D

Voltage relay with LCD, 3300W

Short product description:

  • Protection of connected devices against high/low voltage in ...
  • Protection of connected devices against impulse noises in th...
  • Programmable disconnection thresholds and turn-on delay time...
  • Nonvolatile memory of programmed settings
All features
Similar products
SVEN SF-05LU
SVEN Optima 6 sockets
SVEN SF-10E-16
SVEN SF-08E-16
SVEN SF-06E-16
SVEN SF-05PL
SVEN SF-06E
SVEN SF-05E
  • FEATURES
  • SPECIFICATIONS
  • DESCRIPTION
  • UNBOXING VIDEO
  • SUPPORT
    • Protection of connected devices against high/low voltage in the power supply network
    • Protection of connected devices against impulse noises in the power supply network (varistor)
    • Programmable disconnection thresholds and turn-on delay time
    • Nonvolatile memory of programmed settings

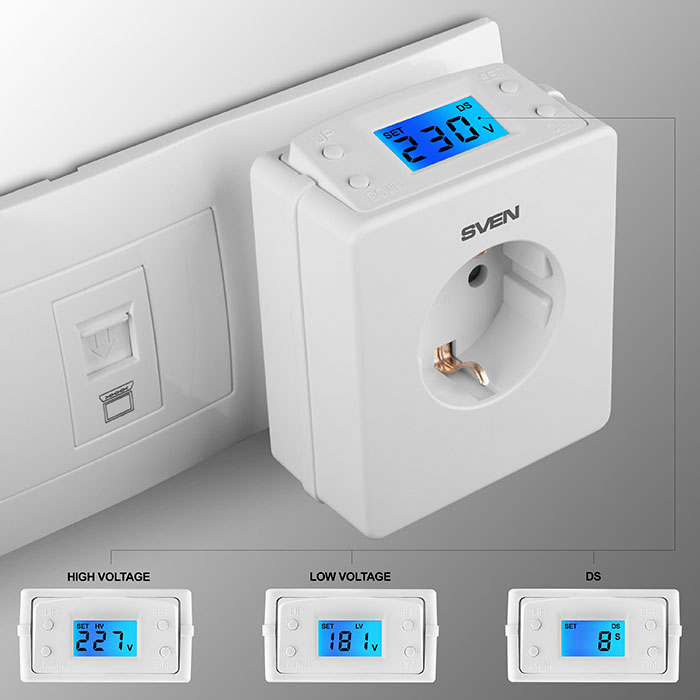

    • Multifunctional LCD display to show voltage level in the power supply net work, delay time and protection status indication
    • Protective shutters in the output socket
    • Presence of protective, fuse * 15А
Measured voltage, V 140 – 280
Operating frequency, Hz 50
Maximum load current, А 15
Maximum power, kVА ≤3.3
Maximum absorbed power, J ≤125
Maximum absorbed current of pulse distortion, A operating mode: 2500
protective mode: 4500
Operation threshold to decrease power supply voltage, V ~150 - 215 ± 2%
Operation threshold to increase power supply voltage, V ~ 225 - 275 ± 2%
Output sockets 1× СЕЕ 7/4
Protection actuation time, sec ≤ 0,3 sec
Dimensions (W × H × D), mm 73 × 78 × 86.7
Weight, kg 0.128
Color white
Life time 2 years
