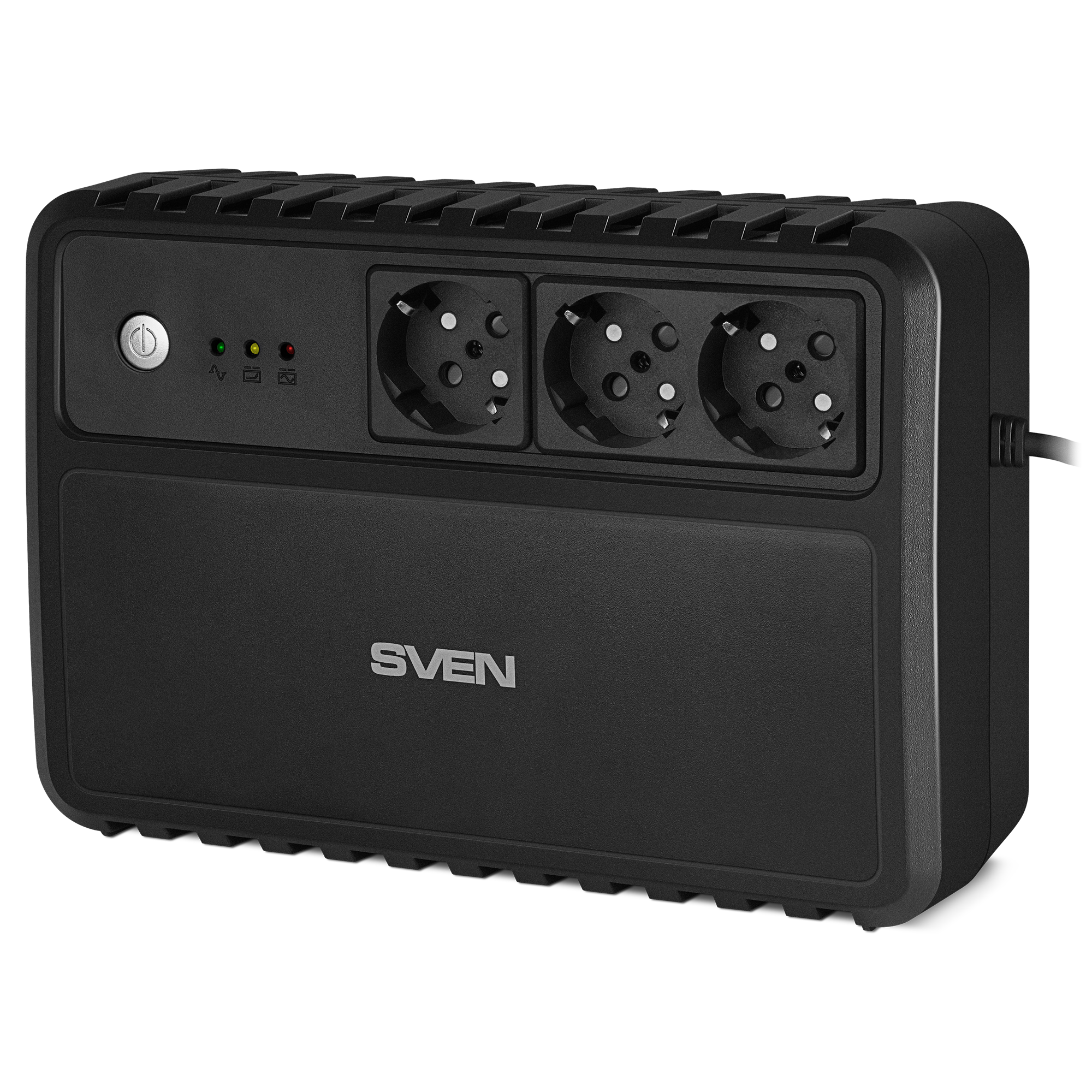

SVEN UP-L800
Line interactive UPS, 400W, 3 sockets
.png "Built-in automatic voltage regulator")
.png "Output voltage range")
AN: SV-021627
SVEN UP-L800
Line interactive UPS, 400W, 3 sockets
Short product description:
- Line Interactive UPS Type
- Thermal protection of the transformer
- Automatic self-testing
- Wall mountable
Similar products
SVEN Pro 400
SVEN Pro 600
SVEN Pro 650 (LCD, USB)
SVEN Pro 800
SVEN Pro 1000 (USB)
SVEN Pro 1500 (LCD, USB)
SVEN UP-L1000E
SVEN RT-500
SVEN RT-1000
SVEN Pro 400
SVEN Pro 600
SVEN Pro 650 (LCD, USB)
SVEN Pro 800
SVEN Pro 1000 (USB)
SVEN Pro 1500 (LCD, USB)
SVEN UP-L1000E
SVEN RT-500
SVEN RT-1000
-
FEATURES
-
SPECIFICATIONS
-
DESCRIPTION
-
UNBOXING VIDEO
-
SUPPORT

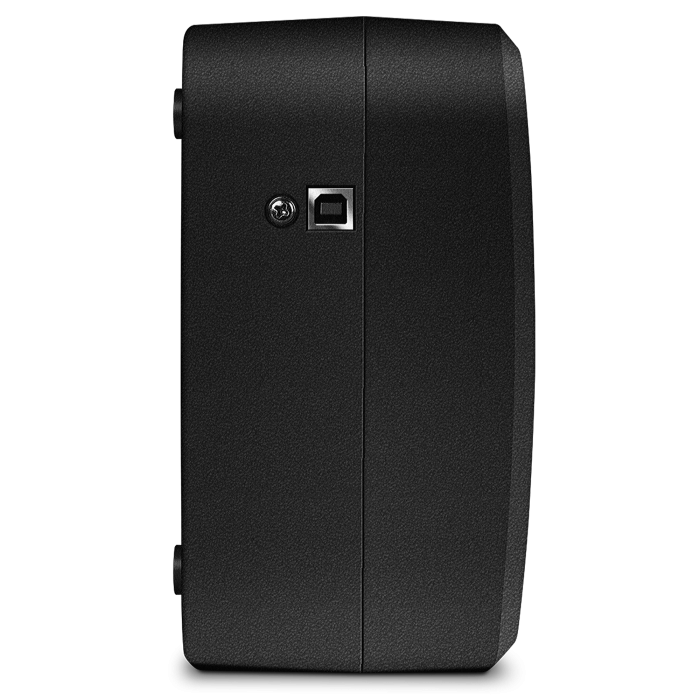

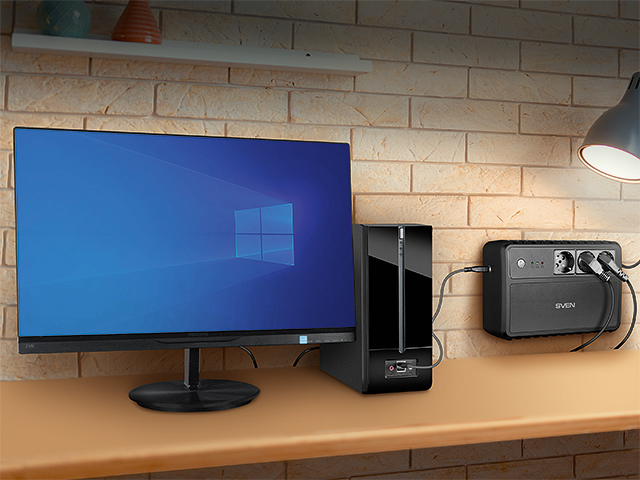

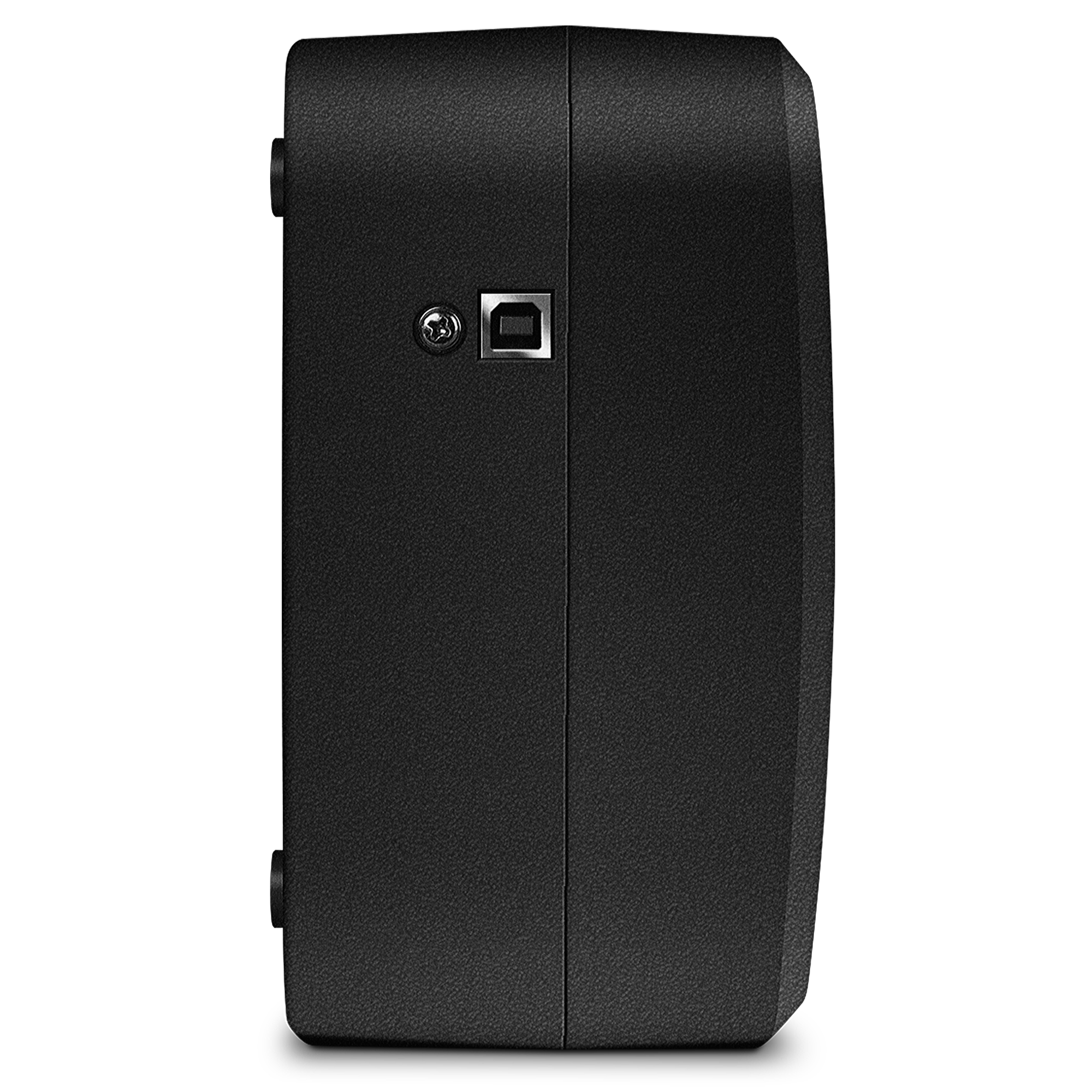

Connection to PC for configuration and control
UPS can connect to a PC for interaction with software for configuration and monitoring.

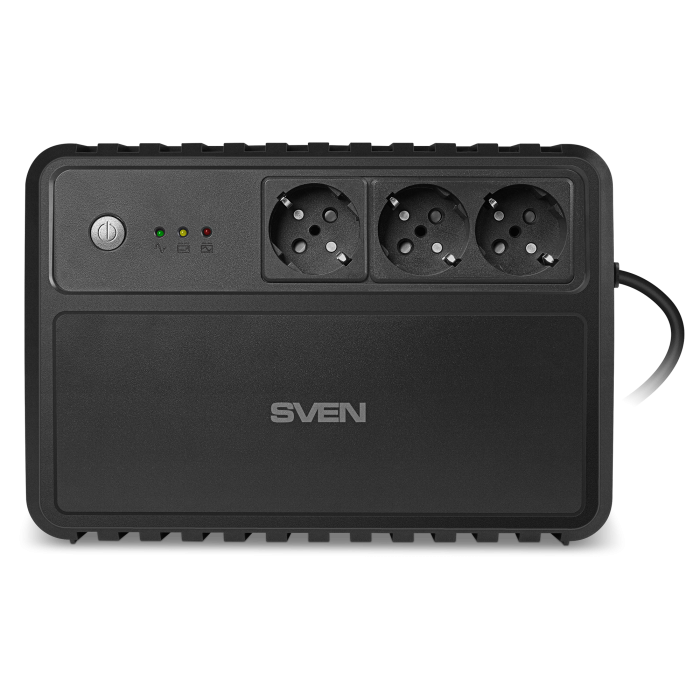

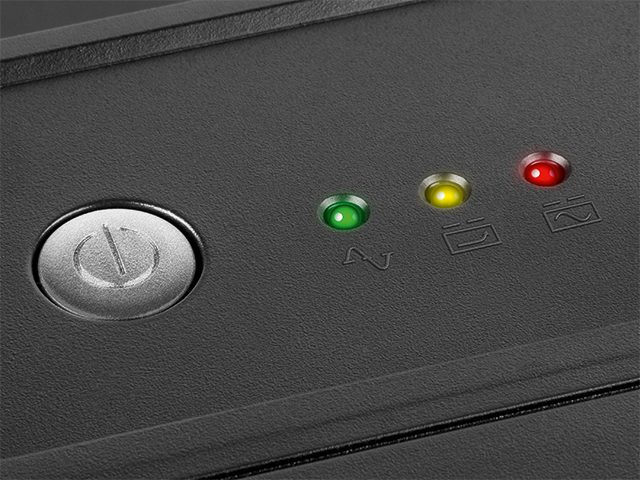

LED indication of operation modes
LED indicators allow to monitor current state and operation mode of the device.

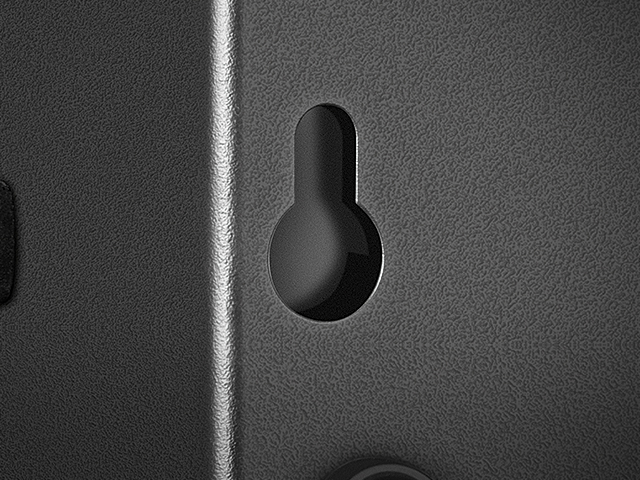

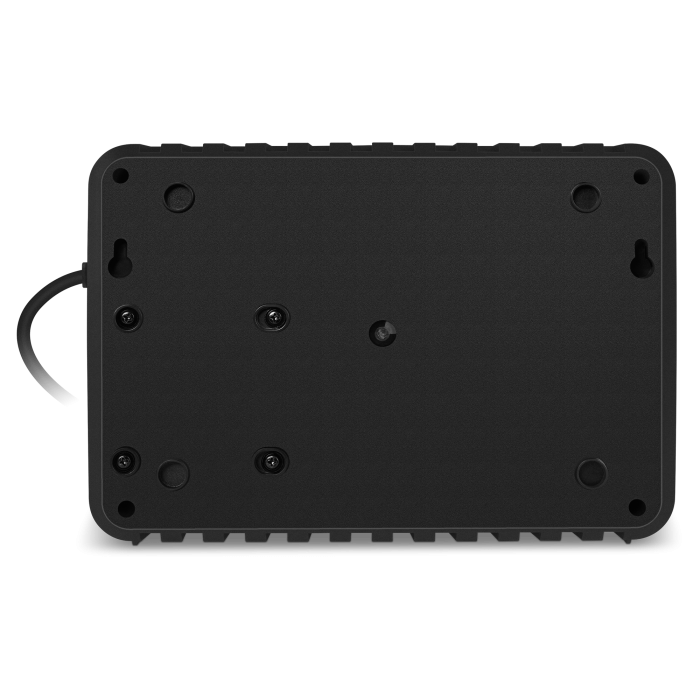

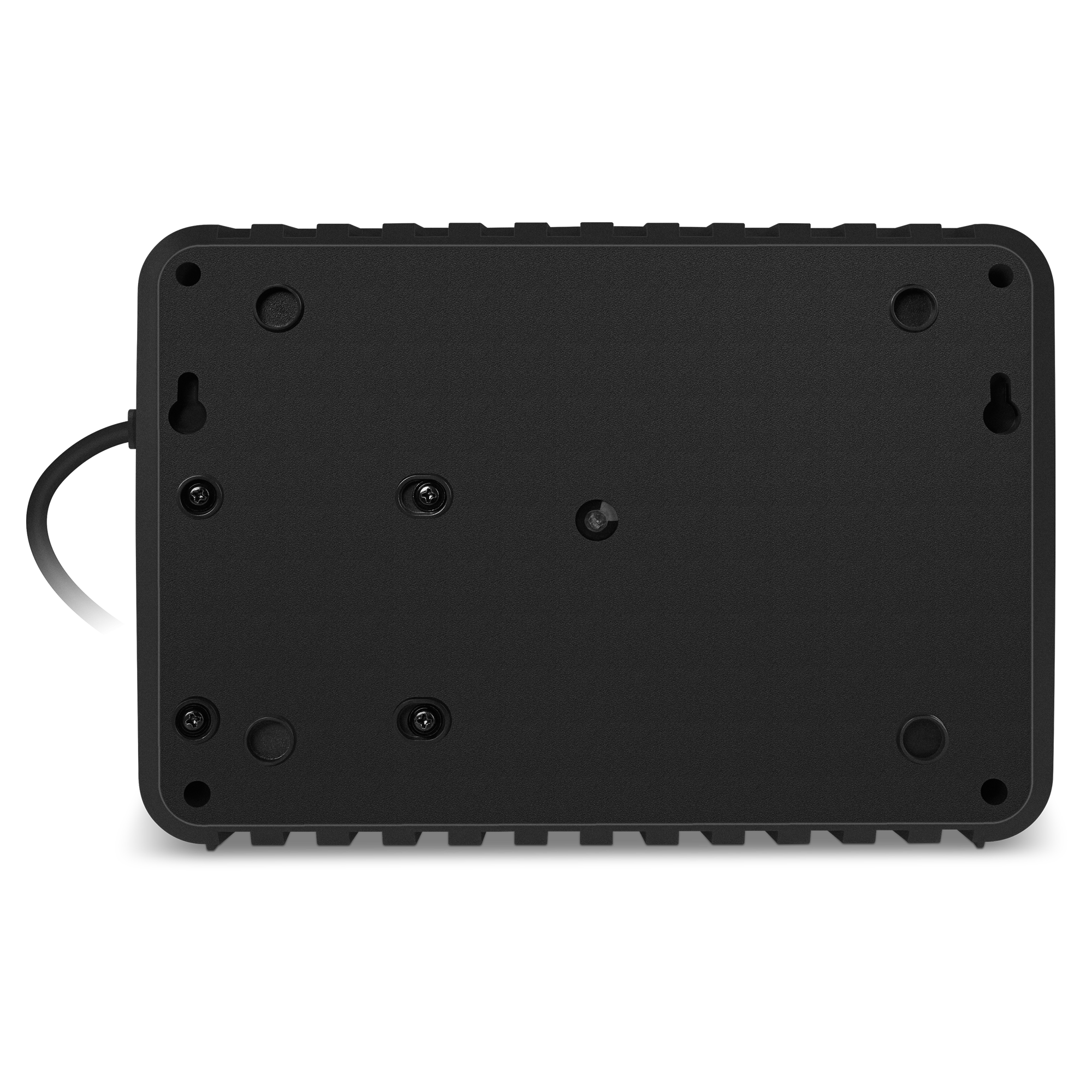

Possibility of wall mounting
Wall mounting allows to position the device in limited space and ensure its complete cooling.
- Line Interactive UPS Type
- Connection to a computer via USB port to control the operation of the UPS
- Thermal protection of the transformer
- Automatic self-testing when turned on
- Protection against high voltage, low voltage, HF and impulse noise
- Input voltage ~175-290 V (±3%)
- Three euro sockets CEE7/4 (EU) with durable fixation of plugs of any type
- Wall mountable
- "Autostart" function when connecting / restoring mains power
- Children protection
- Built-in AVR with wide input voltage range
- Output voltage ~230 V (-14/+10%)
| UPS type | line-interactive |
| Total power, VА | 800 |
| Active power, W | 400 |
| Type of load | computer, monitor |
| Input voltage level, V | ~175 – 290 (± 3 %) |
| Output voltage level, V | ~230 (-14/+10%) |
| Input frequency, Hz | 50 |
| Output frequency, Hz | 50 |
| Number of phases | 1 |
| Communication port | USB |
| Output sockets | 3 × CEE7/4 |
| Battery voltage, V | 12 |
| Battery capacity, А•h | 7 |
| Typical switching time, ms | ≤ 10 |
| Batteries operation time, min | 3 - 20 (dependent on connected load) |
| Environmental temperature, °С | 5 - 40 |
| Relative humidity, % | 10 - 90 |
| Dimensions (W × H × D), mm | 175 × 98 × 255 |
| Weight, kg | 5.2 |
| Color | black |

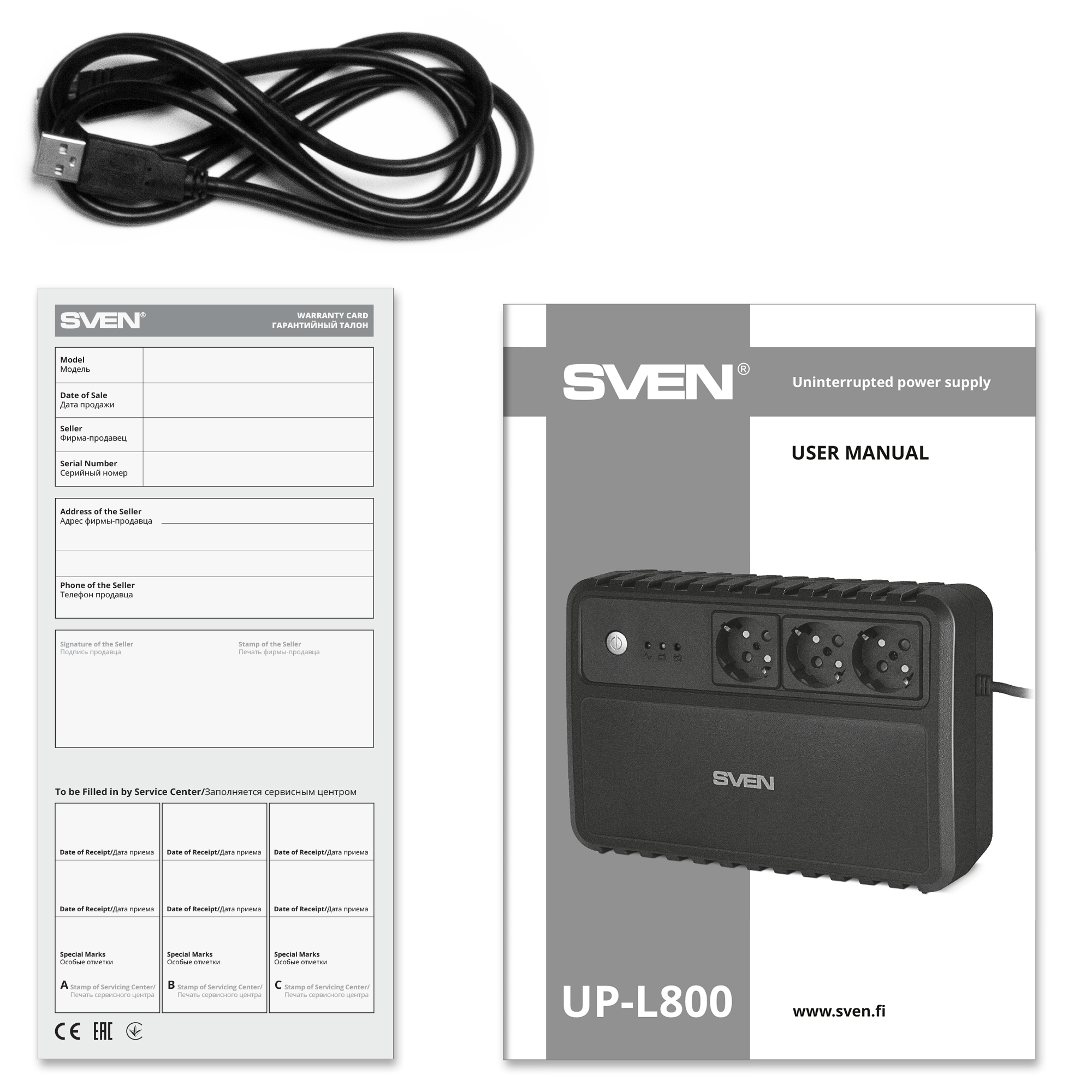

Package contents
- Uninterruptible power supply — 1 pc
- Connection cable — 1 pc
- Operation manual — 1 pc
- Warranty card — 1 pc
Other items
News
05/06/2025
SVEN VR-F600 AUTOMATIC VOLTAGE REGULATOR — FULL POWER SAFETY CONFIDENCE
SVEN automatic voltage regulators range is well known to users seeking for truly high-quality and reliable protection of electrical appliances as comfortable as possible and without excessive costs.
Details >>
04/17/2025
SVEN SF-10E-16 EXTENSION SURGE PROTECTOR — SAFE CONNECTION OF UP TO TEN DEVICES
The main thing that is interesting about SVEN SF-10E-16 is, undoubtedly, the safe and convenient connection of up to 10 devices at once, and with a solid total power.
Details >>
04/07/2025
SVEN MC-50 ACOUSTIC HI-FI SYSTEM — PEOPLE'S FLAGSHIP FROM THE LEGENDARY LINE
For decades, multimedia 2.0 acoustics from our company have enabled a wide range of music lovers to experience real Hi-Fi. Our speakers have always been appreciated not only for their good sound, but also for their affordable price.
Details >>Uninterruptible power supply units are broadly used not only at large enterprises and plants, but also at small offices, at home work office or gaming space. Besides, they can be helpful to backup expensive household appliances — from TV sets to home theaters. With such usage scenarios, an affordable price is as crucial as UPS features — sometimes a consumer cannot invest a lot into safety. To address this concern, our company continuously expands its series of line-interactive UPS, helping build reliable protection at any budget. UP-L800 UPS is another instance of a cost-effective series, that can provide high-quality and stable power for appliances with total power consumption up to 400 W.
Traditionally, developers did not compromise in terms of safety. Moreover, they embedded the UPS with features, that are usually offered by much more expensive products. Enclosure of SVEN UP-L800 is made of rigid fireproof plastic, however safety is mostly provided by fault prevention system triggered by such factors as: overload, short circuit, etc. Built-in stabilizer makes the UPS ready to any unpleasant surprises, that can be caused by electric grid: from voltage swings to high-frequency and pulse noises. This would be especially handy in places where power supply quality is usually low — at a summer house or in a village, in old houses and so on. If power supply from electric grid is interrupted for some reason, UP-L800 quickly switches to operation from a battery, protecting the hardware from sudden shutdown and enabling a user to properly finish the work — for instance, save important documents.

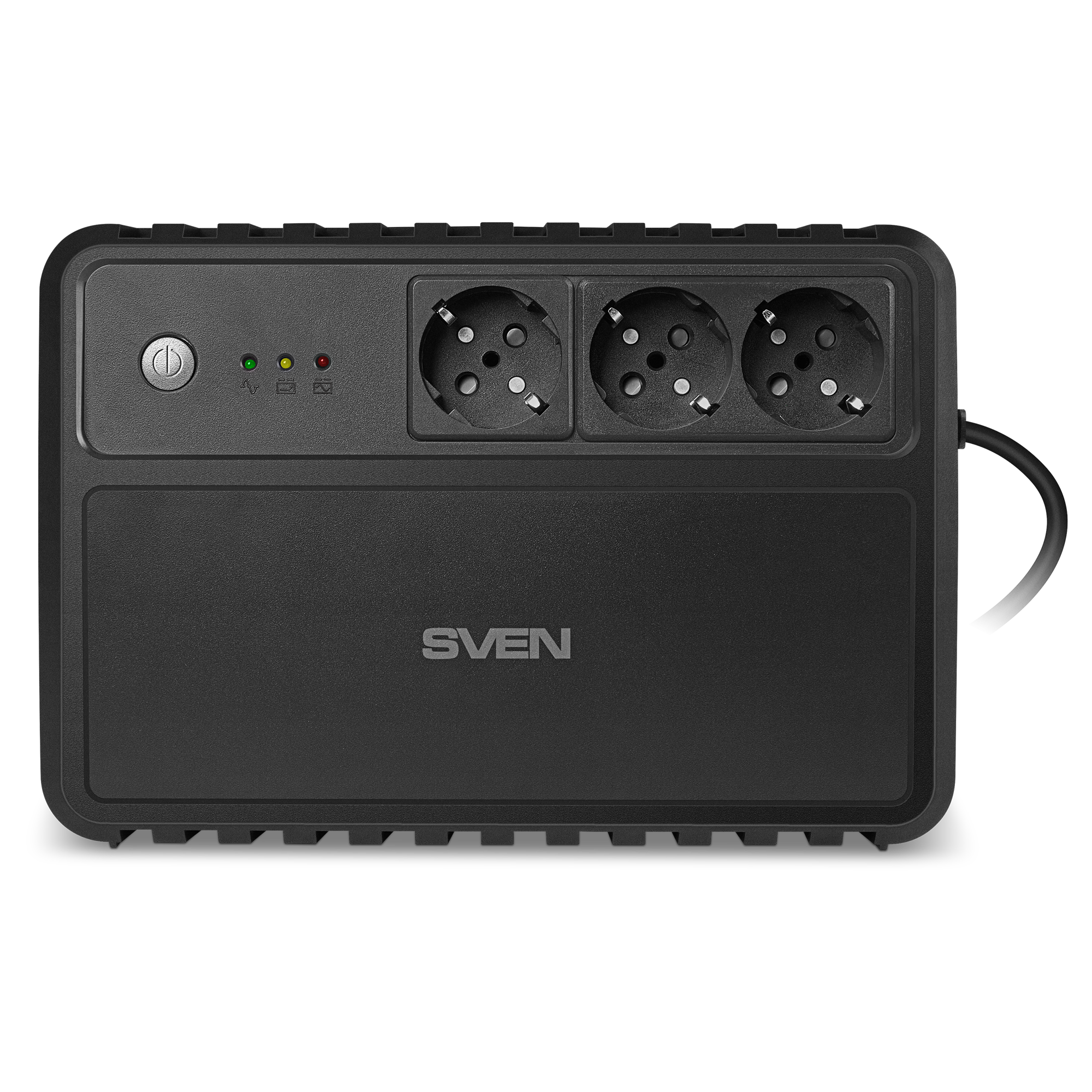

The device can be connected using 3 euro sockets CEE7/4 (EU) with reliable fixation of all kinds of plugs — it is sufficient to connect a PC, a monitor and a desktop sound system. Or you can connect a TV set, a player and an amplifier — any user could find a suitable scenario. It would not be an issue to find a place for your UPS — it can be put on a flat surface or hung on a wall using mounting fasteners. If any of the plugs is idle, special shutters would protect it from foreign objects. SVEN UP-L800 UPS can be controlled using a computer — the UPS can be connected via USB port.
SVEN UP-L800 uninterruptible power supply is a great instance of low-budget devices, providing comprehensive protection for electronics and supporting operation of appliances in case of short-term power supply shutdown. You can test it any time you want: the device is already available on the shelves and in catalogs of household appliances and electronics stores.
