SVEN VR-A3000

Catalog Electrical Equipment Automatic Voltage Regulators SVEN VR-A3000

SVEN VR-A3000

Short product description:

Microprocessor control
Enhanced precision of output voltage regulation
Protection of consuming appliance against high/low voltage ...
Protection of AVR against short circuit and overload

All features

Similar products

SVEN VR-L600

SVEN VR-L1000

SVEN VR-L1500

SVEN VR-A1000

SVEN AVR SLIM-500 LCD

SVEN AVR SLIM-1000 LCD

SVEN AVR SLIM-2000 LCD

SVEN VR-F600

SVEN VR-F1000

SVEN VR-F1500

FEATURES
SPECIFICATIONS
DESCRIPTION
UNBOXING VIDEO
SUPPORT

Microprocessor control
Enhanced precision of output voltage regulation
Protection of consuming appliance against high/low voltage
Protection of AVR against short circuit and overload
Thermal protection of autotransformer
Power supply delay function (6 - 180 sec.) after work resumption

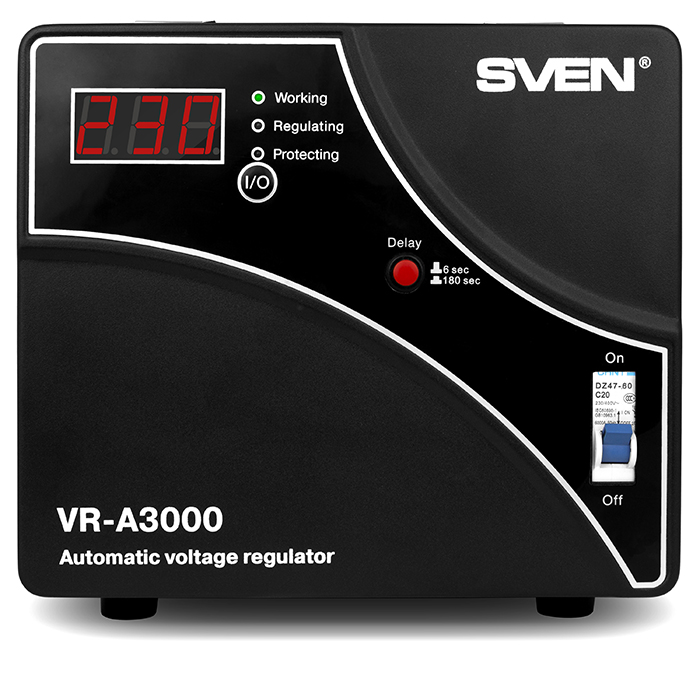

Digital indicator of input/output voltage on the front panel
Built-in surge protector

AVR type	relay
Total power, VА	≤3000
Maximum load, W	≤1800
Input voltage, V	~140 – 275 ± 3%
Output voltage, V	~230 (-14/+10%)
Input frequency, Hz	50
Output frequency, Hz	50

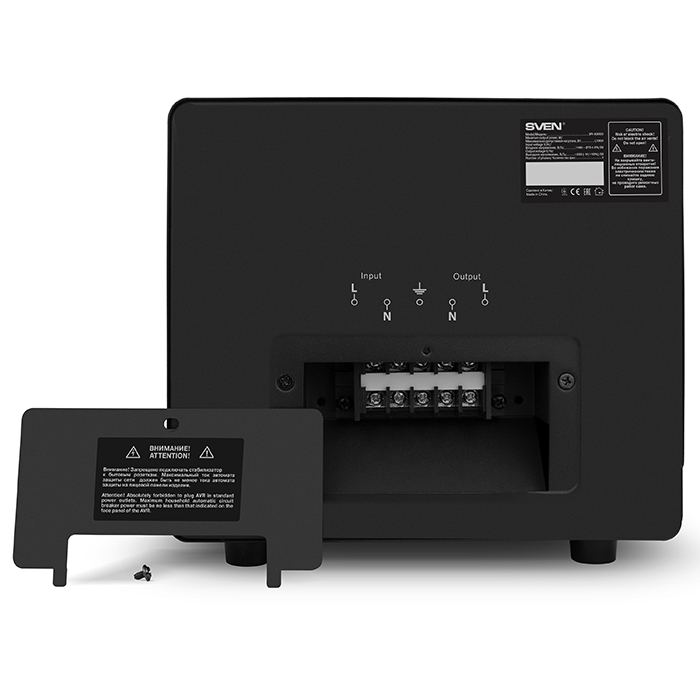

Input terminals	terminals
Output terminals	terminals
Protection	high/low voltage, short circuit; overload, high-frequency interference, built-in thermal protection
Protection operating current, A	20
Typical switching time, ms	≤ 10
Indicators	Delaying / protection, Working, Regulating
Fuse	bimetallic circuit breaker
Environmental temperature, °С	0 to +40
Relative humidity, %	10 ~ 90 (without condensation)
Cable length, m	1.3
Case material	metal
Dimensions (W × H × D), mm	317 × 230 × 240
Weight, kg	7.2
Color	black
Product life	5 years
