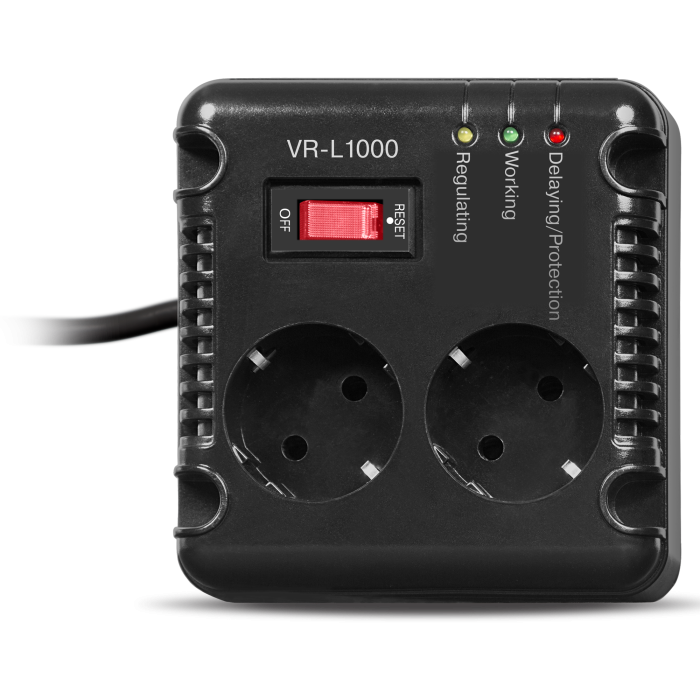

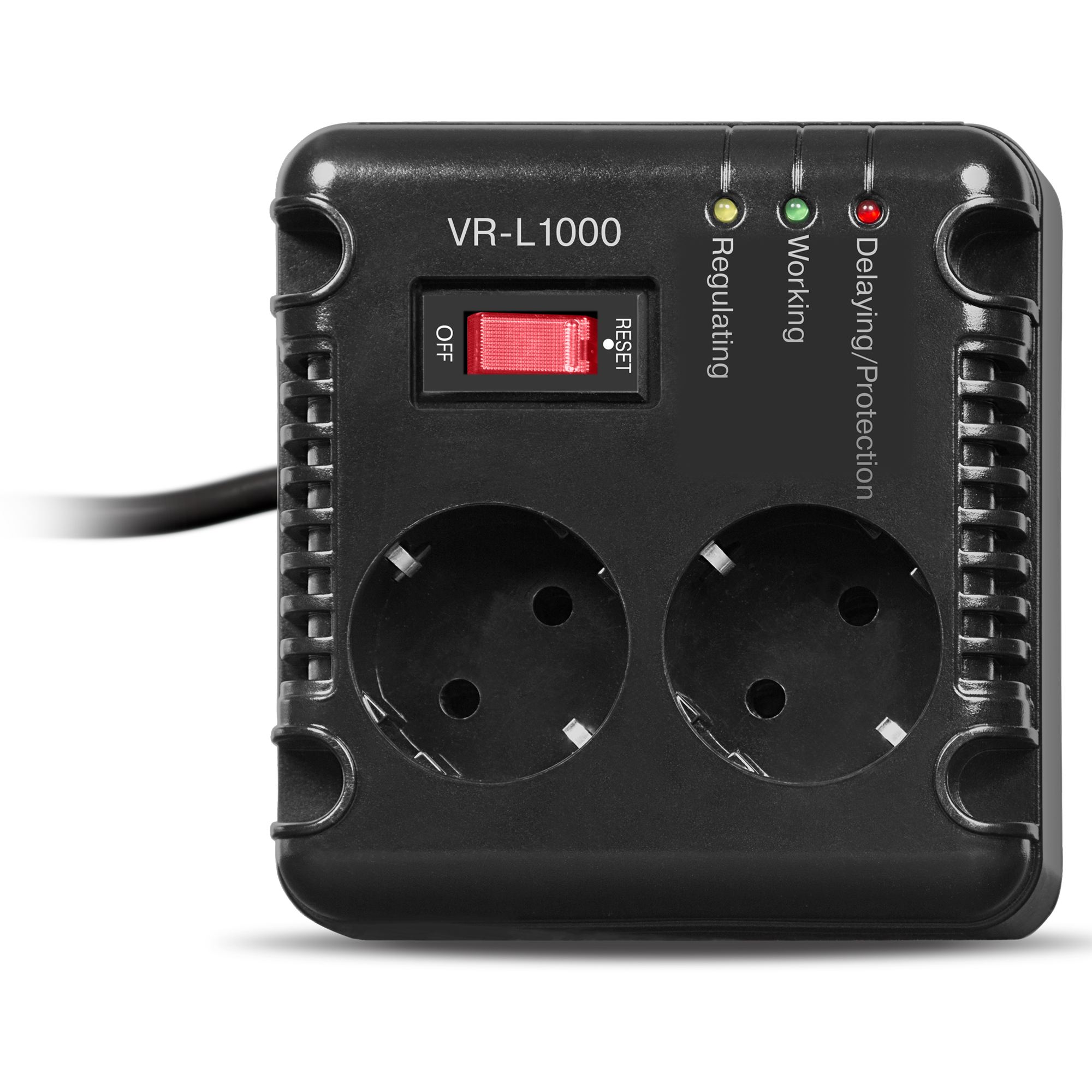

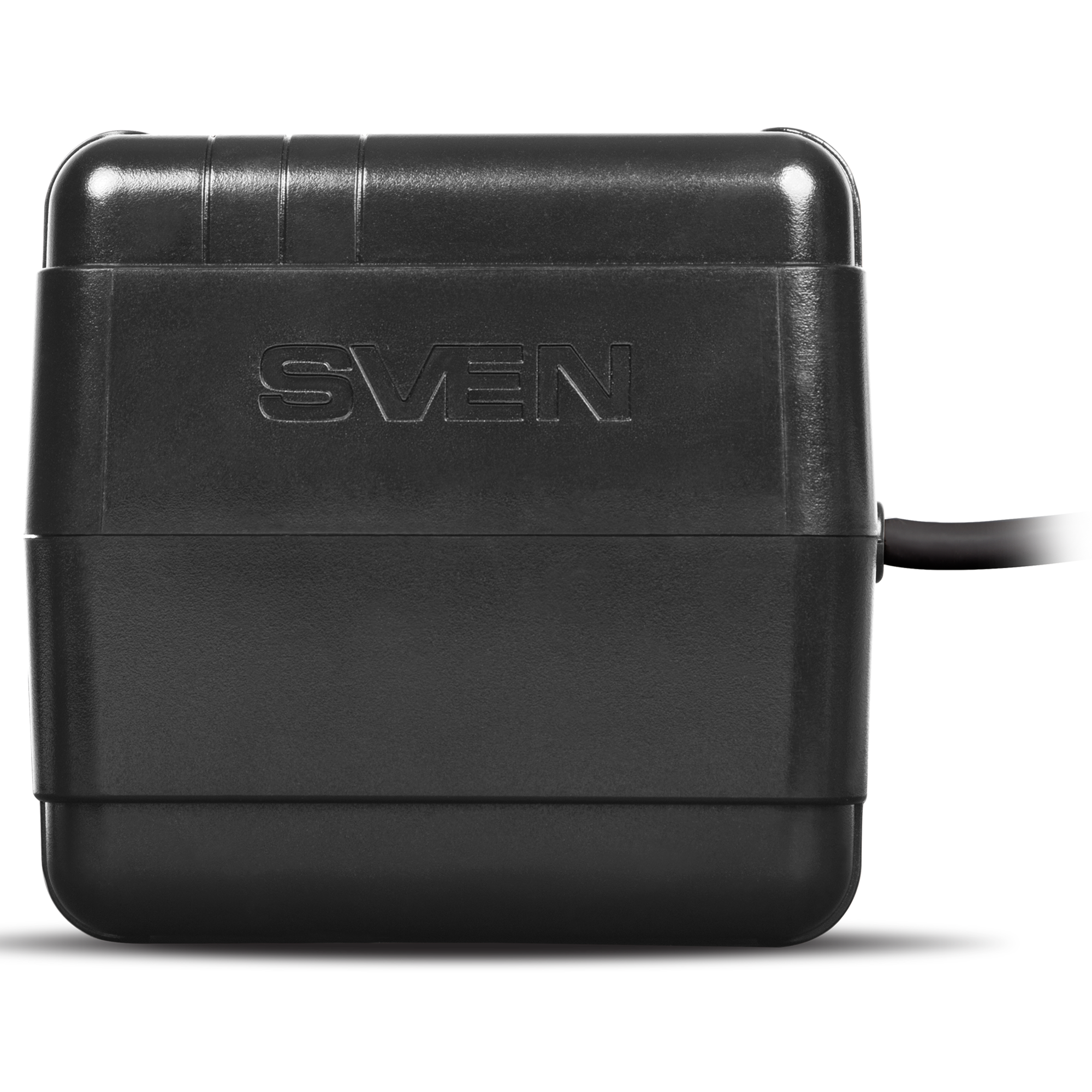

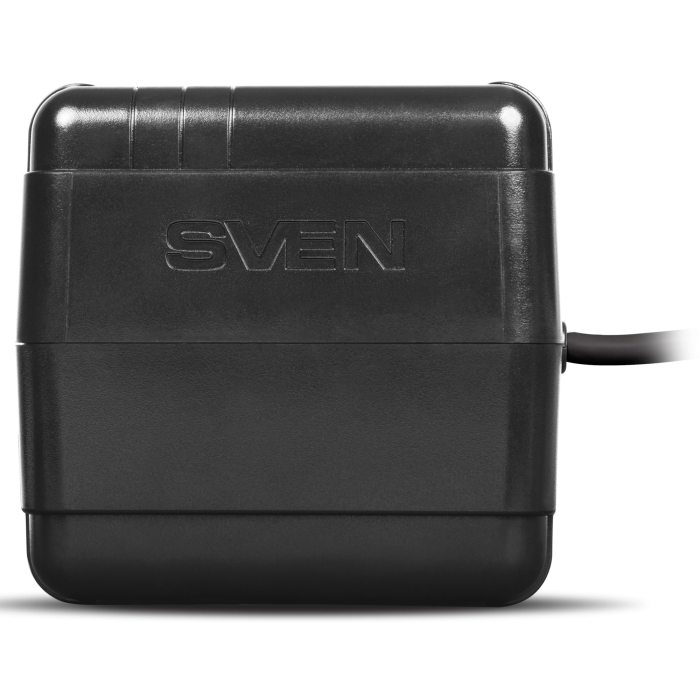

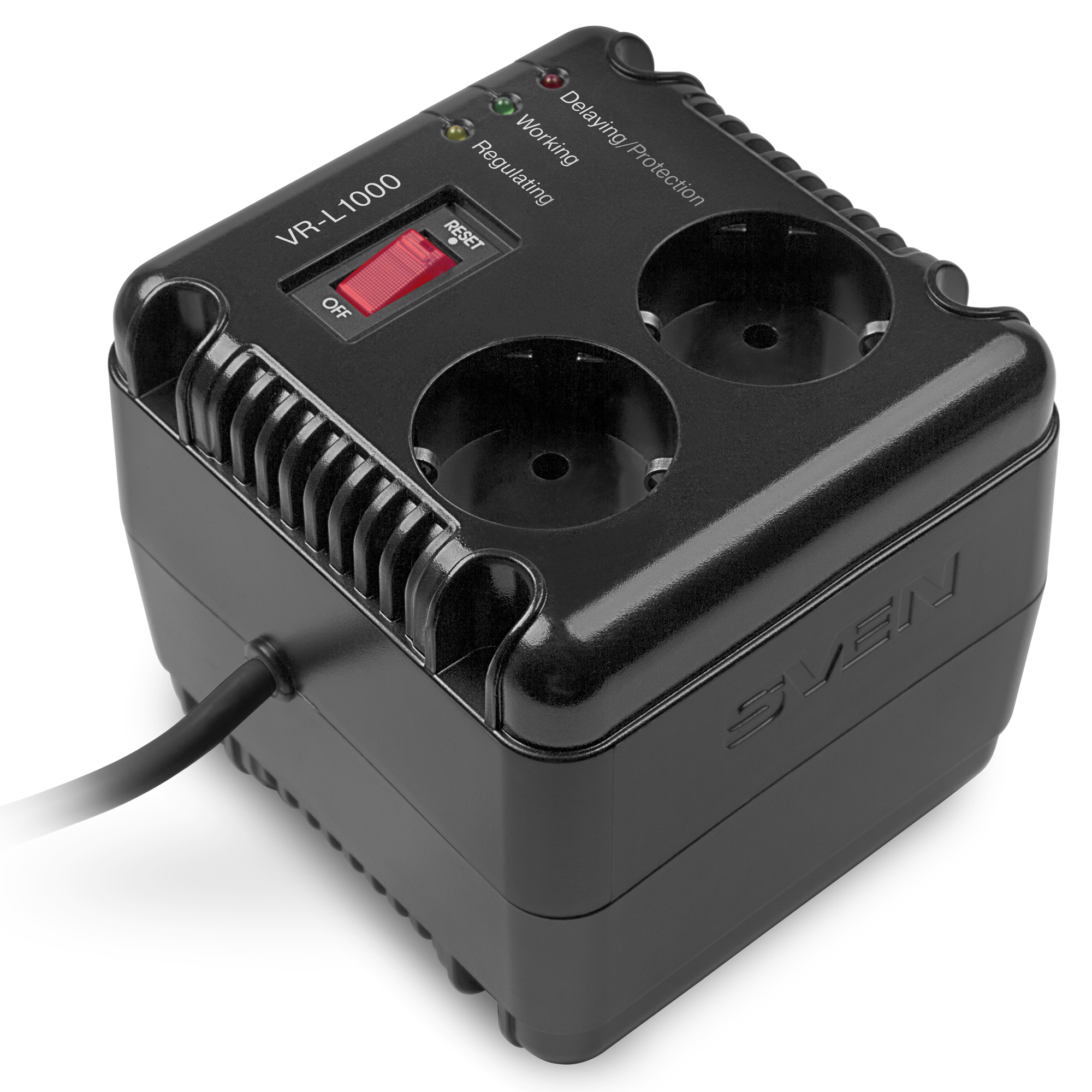

SVEN VR-L1000
Relay automatic voltage regulator, 320 W, 2 sockets
AN: SV-014872
SVEN VR-L1000
Relay automatic voltage regulator, 320 W, 2 sockets
Short product description:
- Single-phase relay-type stabilizer
- LED indication of operating modes
- Thermal protection of the transformer
- Safe shutdown at high and low mains voltage levels
Similar products
SVEN VR-L600
SVEN VR-L1500
SVEN VR-A1000
SVEN AVR SLIM-500 LCD
SVEN AVR SLIM-1000 LCD
SVEN AVR SLIM-2000 LCD
SVEN VR-F600
SVEN VR-F1000
SVEN VR-F1200U
SVEN VR-F1500
SVEN VR-F2000U
SVEN VR-L600
SVEN VR-L1500
SVEN VR-A1000
SVEN AVR SLIM-500 LCD
SVEN AVR SLIM-1000 LCD
SVEN AVR SLIM-2000 LCD
SVEN VR-F600
SVEN VR-F1000
SVEN VR-F1200U
SVEN VR-F1500
SVEN VR-F2000U
-
FEATURES
-
SPECIFICATIONS
-
DESCRIPTION
-
UNBOXING VIDEO
-
SUPPORT
- Single-phase relay-type stabilizer
- LED indication of operating modes
- Thermal protection of the transformer
- Safe shutdown at high and low mains voltage levels
- Varistor protection against high-voltage impulse noise
- Two EU sockets CEE7/4 (EU) with durable fixation of plugs of any type
| AVR type | relay |
| Maximum load, W | ≤320 |
| Input voltage, V | ~184 – 285±3% |
| Output voltage, V | ~230 (-14/+10%) |
| Input frequency, Hz | 50 |
| Output frequency, Hz | 50 |
| Output sockets | 2 × СЕЕ7/4 |
| Protection | against high/low voltage, high-voltage pulse, short circuit and overload, built-in thermal protection |
| Protection operating current, A | 5 |
| Indicators | on-line operation, voltage overload, stabilization mode |
| Fuse | bimetallic circuit breaker |
| Maximal suppressed energy, Joule | ≤320 |
| Input plug | 1 × СЕЕ7/7 |
| Environmental temperature, °С | 0 to +40 |
| Relative humidity, % | 10 ~ 90 (without condensation) |
| Dimensions (W × H × D), mm | 118 × 106 × 112 |
| Product life | 5 years |
Package contents
- Automatic voltage regulator — 1 pc
- User manual — 1 pc
- Warranty card — 1 pc
