SVEN SV121000
UPS battery 12V 100Ah
AN: SV-012267
SVEN SV121000
UPS battery 12V 100Ah
Short product description:
- Lead-acid battery of AGM type
- Leak-proof design
- Doesn't require maintenance and service
- Increased service life
Similar products
SVEN SV645
SVEN SV1250
SVEN SV1270
SVEN SV1272
SVEN SV1290
SVEN SV12120
SVEN SV12170
SVEN SV645
SVEN SV1250
SVEN SV1270
SVEN SV1272
SVEN SV1290
SVEN SV12120
SVEN SV12170
-
FEATURES
-
SPECIFICATIONS
-
DESCRIPTION
-
UNBOXING VIDEO
-
SUPPORT
- Lead-acid battery of AGM type
- Leak-proof design
- Maintenance-free: doesn't require maintenance and can operate in any position
- Design of interelectrode separators made of glass fiber increases service life
- Does not liberate gas during operation
- Valve system protecting the battery against increased pressure
- Highly effective lead-calcium electrode grids increasing capacity
- Lowered self-discharge current
| Battery type | Lead-acid AGM type storage battery |
| Rated voltage, V | 12 |
| Maximum discharge current, A | 1000 |
| Capacity (20 hours discharge), А • h | 100 |
| Maximum charging current, A | 30 |
| Internal resistance, MOhm | 6.5 |
| Self-discharge (at 25 °C of initial capacity) during the year | up to 36 % |
| Rated operating temperature, °C | 25 |
| Operating temperature range, °C | -20 up to +50 |
| Terminal type | T11 (M8) |
| Length, mm | 331 |
| Width, mm | 173 |
| Hight, mm | 213 |
| Total hight, mm | 233 |
| Weight, kg | 29.5 |
| Color | black |
| Life time | 8 years |
Other items
News
06.05.2025
SVEN VR-F600 AUTOMATIC VOLTAGE REGULATOR — FULL POWER SAFETY CONFIDENCE
SVEN automatic voltage regulators range is well known to users seeking for truly high-quality and reliable protection of electrical appliances as comfortable as possible and without excessive costs.
Details >>
17.04.2025
SVEN SF-10E-16 EXTENSION SURGE PROTECTOR — SAFE CONNECTION OF UP TO TEN DEVICES
The main thing that is interesting about SVEN SF-10E-16 is, undoubtedly, the safe and convenient connection of up to 10 devices at once, and with a solid total power.
Details >>
07.04.2025
SVEN MC-50 ACOUSTIC HI-FI SYSTEM — PEOPLE'S FLAGSHIP FROM THE LEGENDARY LINE
For decades, multimedia 2.0 acoustics from our company have enabled a wide range of music lovers to experience real Hi-Fi. Our speakers have always been appreciated not only for their good sound, but also for their affordable price.
Details >>As of today the lead-acid maintenance-free batteries of AGM type are the most widespread type of batteries for the reserve power supply. The main fields of application are UPS; light, alarm and security systems; direct-current power supply; automatic control system.
Batteries of SVEN SV series are notable for the following specifications: low self-discharge current, wide operation temperature range, high coefficient of efficiency and quality of manufacture.
The most optimal variant of the use of external SVEN SV12500 and SVEN SV121000 storage batteries is their application jointly with Reserve Home UPS (Reserve Home-500, Reserve Home-800 or Reserve Home-1000) for uninterrupted power supply of heating systems, communication systems, security and fire systems. More information see in "Selection of uninterrupted power supply systems".
Other items
News
06.05.2025
SVEN VR-F600 AUTOMATIC VOLTAGE REGULATOR — FULL POWER SAFETY CONFIDENCE
SVEN automatic voltage regulators range is well known to users seeking for truly high-quality and reliable protection of electrical appliances as comfortable as possible and without excessive costs.
Details >>
17.04.2025
SVEN SF-10E-16 EXTENSION SURGE PROTECTOR — SAFE CONNECTION OF UP TO TEN DEVICES
The main thing that is interesting about SVEN SF-10E-16 is, undoubtedly, the safe and convenient connection of up to 10 devices at once, and with a solid total power.
Details >>
07.04.2025
SVEN MC-50 ACOUSTIC HI-FI SYSTEM — PEOPLE'S FLAGSHIP FROM THE LEGENDARY LINE
For decades, multimedia 2.0 acoustics from our company have enabled a wide range of music lovers to experience real Hi-Fi. Our speakers have always been appreciated not only for their good sound, but also for their affordable price.
Details >>Other items
News
06.05.2025
SVEN VR-F600 AUTOMATIC VOLTAGE REGULATOR — FULL POWER SAFETY CONFIDENCE
SVEN automatic voltage regulators range is well known to users seeking for truly high-quality and reliable protection of electrical appliances as comfortable as possible and without excessive costs.
Details >>
17.04.2025
SVEN SF-10E-16 EXTENSION SURGE PROTECTOR — SAFE CONNECTION OF UP TO TEN DEVICES
The main thing that is interesting about SVEN SF-10E-16 is, undoubtedly, the safe and convenient connection of up to 10 devices at once, and with a solid total power.
Details >>
07.04.2025
SVEN MC-50 ACOUSTIC HI-FI SYSTEM — PEOPLE'S FLAGSHIP FROM THE LEGENDARY LINE
For decades, multimedia 2.0 acoustics from our company have enabled a wide range of music lovers to experience real Hi-Fi. Our speakers have always been appreciated not only for their good sound, but also for their affordable price.
Details >>Other items

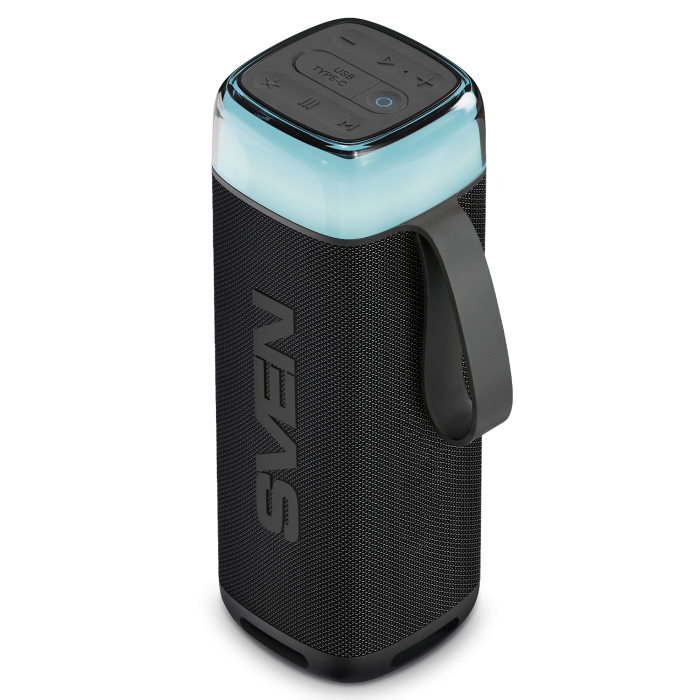

Multifunctional speaker system with Bluetooth, USB/SD player, FM radio, display, remote control
