SVEN SOHO 2000

Catalog Electrical Equipment Automatic Voltage Regulators SVEN SOHO 2000

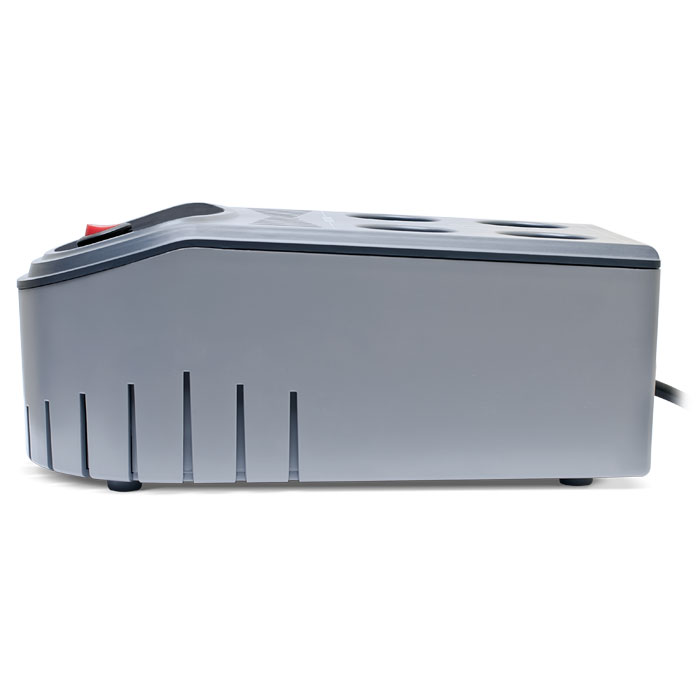

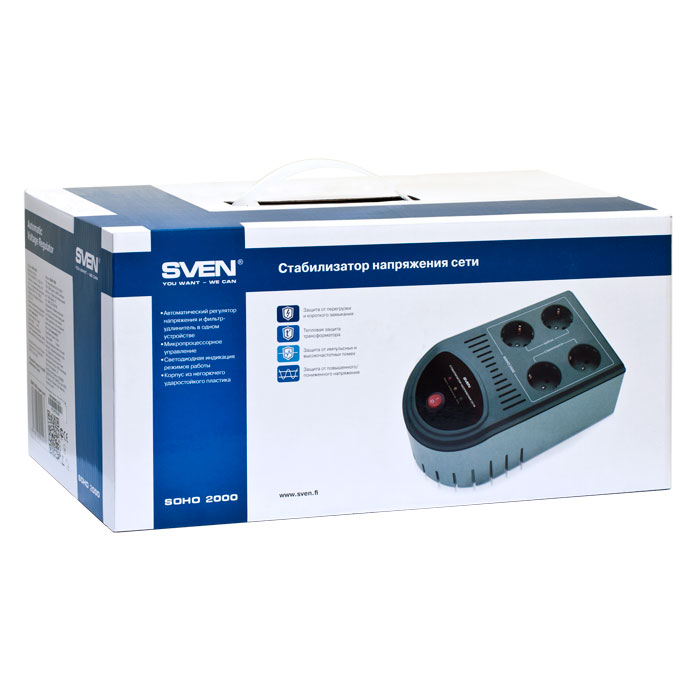

SVEN SOHO 2000

Short product description:

Automatic voltage regulator and surge protector combined
Wide range of input voltages
Microprocessor control
Toroidal transformer with built-in thermal protection

All features

Similar products

SVEN E-727BT

SVEN E-701BT

SVEN E-340B

SVEN E-315B

SVEN E-292M

SVEN E-310B

SVEN E-282M

SVEN E-211M

SVEN E-210M

SVEN E-12 WD (SEB 12 WD)

SVEN E-10 BK (SEB 10 BK)

SVEN E-110

SVEN E-109M

SVEN E-109 (SEB-109)

SVEN E-108 (SEB-108)

SVEN E-107

SVEN E-106

FEATURES
SPECIFICATIONS
DESCRIPTION
UNBOXING VIDEO
SUPPORT

Automatic voltage regulator and surge protector combined
Wide range of input voltages
Microprocessor control
Toroidal transformer with built-in thermal protection
Protection against high/low voltage, overload and short circuit, pulse and high-frequency interferences
Non-flammable shockproof plastic case
LED indication of operation modes

Type	relay
Maximum load, W	800 (stabilized output), 1300 (bypass output)
Input voltage level, V	140 – 270
Output voltage level, V	220 ± 8%
Frequency, Hz	50
Output sockets	2 × СЕЕ7/4 (stabilized output) 2 × СЕЕ7/4 (bypass output)
Indicators	on-line operation, protection, regulation mode
Maximal suppressed energy, Joule	125
Maximal interference current, A	7
Environment operation conditions	environment temperature, 0 ~ 40 °C relative humidity (non-condensing) – 10 ~ 90%
Cord length, m	1.5
Dimensions (W × H × D), mm	140 × 100 × 250
Weight, kg	2.4
Life time	5 years

Other items

SVEN IC-965

Web camera Full HD resolution

SVEN MK-740

Wireless dynamic microphone

SVEN PS-99

Waterproof portable speaker with backlight

SVEN GC-W650 Racing Wheel

PS-3/4/XB1S/X/XB360/N-Switch/Windows/Android compatible gaming steering wheel

SVEN SV12170

UPS battery 12V 17Ah

SVEN AP-U1001MV

Gaming headset with RGB backlight

SVEN RT-500

300W Sine Wave Line Interactive UPS, External Batteries

SVEN E-107

Wired in-ear earbuds

SVEN PS-380

Waterproof portable speaker system with backlight

SVEN KB-C7500EL

Backlit wired keyboard

New

SVEN PS-1225

Party speaker system with Bluetooth, karaoke and FM radio

SVEN 150

Compact speakers with cable volume control

SOHO 1000 and SOHO 2000 automatic voltage regulators of SVEN Company are intended for a home user and combine two devices: an automatic voltage regulator and a surge protector. They are designed to protect your electronic equipment against unstable mains voltage. The AVR is recommended for protection of any types of TV-setss, DVD players (recorders), audio and computer equipment and other home electronics.

SOHO AVRs provide power supply to the equipment connected to stabilized outputs in the range 220 V ± 10 % at mains voltage ranging from 140 to 270 V. If input voltage rises above 270 V or falls below 140 V, the protection system will provide safe disconnection of the connected equipment from the power supply network. The built-in surge protector provides protection against pulse interferences.

Two bypass sockets are designed for providing constant safe connection of home and computer equipment to the power supply network and protecting it against pulse and high-frequency interferences, as well as they have the built-in overload and short circuit protection of devices connected to them.
