SVEN Reserve Home-500

SVEN Reserve Home-500

Short product description:

  • Continuous action with prolonged back-up time
  • Regular sinusoidal output signal
  • Microprocessor control
  • Intellectual charger for connected external batteries (stora...
All features
Similar products
SVEN Pro 400
SVEN Pro 600
SVEN Pro 650 (LCD, USB)
SVEN Pro 800
SVEN Pro 1000 (USB)
SVEN Pro 1500 (LCD, USB)
SVEN UP-L800
SVEN UP-L1000E
SVEN RT-500
SVEN RT-1000
  • FEATURES
  • SPECIFICATIONS
  • DESCRIPTION
  • UNBOXING VIDEO
  • SUPPORT
    • Continuous action with prolonged back-up time
    • Regular sinusoidal output signal
    • Microprocessor control
    • Intellectual charger for connected external batteries (storage batteries) with the “training” mode of batteries
    • Protection against short circuit, overvoltage or undervoltage of the mains and overload
    • IP-20 ingress protection
    • Self-diagnosis after switching on

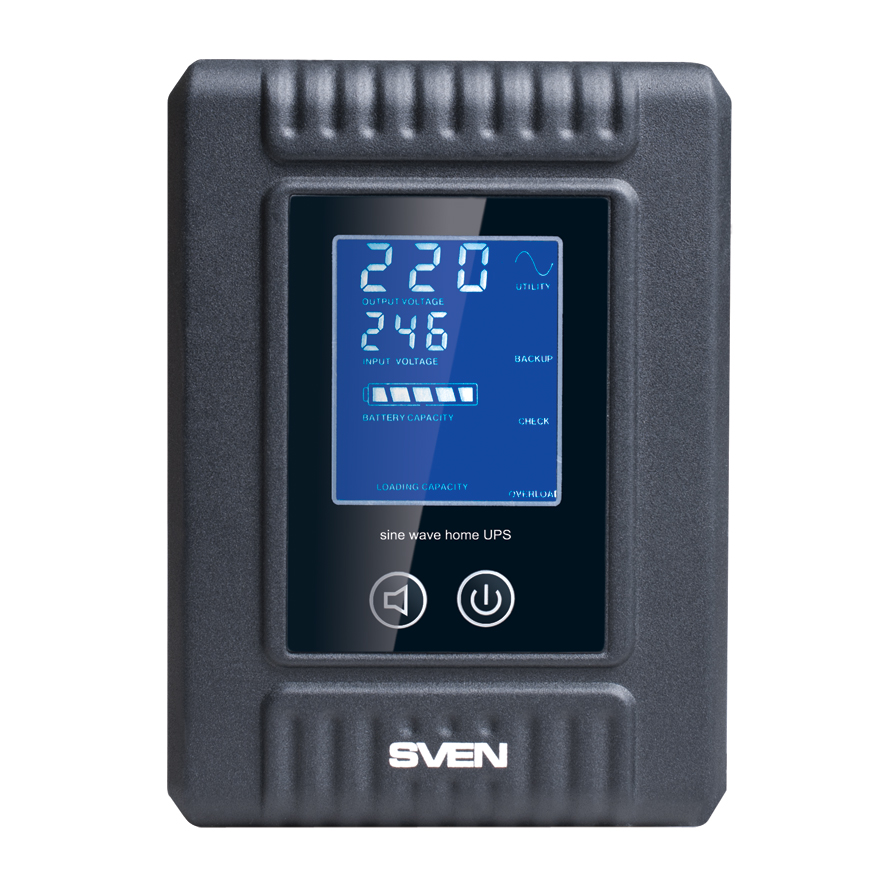

    • Indication of operation modes on LCD display
    • Mode switchover time ≤ 5 msec
    • Built-in line regulator
    • Automatic start function
    • Low noise level
UPS type line-interactive of continuous action with long backup time
Built-in AVR available
Total power, VА 500
Active power, W 300
Type of load household and industrial equipment
Maximum load, W 300
Input voltage level, V ~150 – 275
Output voltage level, V ~220 ± 10 %
Output voltage waveform regular sinusoidal signal
Input frequency, Hz 50
Output frequency, Hz 50
Number of phases 1
Communication port RS232
Input terminals terminals for battery connection
Input socket 1 × CEE 7/7
Output sockets 1 × CEE7/4
Allowable overload of the rated power, % ≤ 110
Overload protection acting, % 120
Protection against short circuit, overvoltage or undervoltage of the mains and overload
Beeps low battery charge, overload, error
Accumulator type non-serviceable leakproof lead-acid batteries (not included)
Typical switching time, ms < 5
Cooling type convective; by fan
Indication operation modes on LCD display
Operation mode continuous action with long backup time
Noise level, dB 45
Operating temperature, °С from -5 to +40
Operating humidity, % 10-90, without condensation
Efficiency, % 65
Case material metal
Dimensions (W × H × D), mm 115 × 165 × 344
Weight, kg 4.6
Color black
Life time 5 years

Other items

Wired keyboard

Windows compatible gaming steering wheel with shift lever

Compact gaming soundbar for computer with Bluetooth and dynamic switchable lighting

Backlit gaming keyboard

Microfiber mouse pad with rubber backing

Full size wired headset

Waterproof portable speaker system with backlight

Windows compatible gaming steering wheel

Wired mouse with copy/paste buttons

Backlit wireless stereo headset

Wired in-ear earbuds

Wireless mouse with adjustable cursor speed

News

15.07.2025

SVEN AP-B800MV FULL-SIZE HEADSET — HARMONY OF SOUND AND SILENCE

We continue to develop the line of stylish and technological headphones, combining in new models everything that is important for a modern user: from high level of reliability and comfort to availability of the most advanced functions.

Details >>
14.07.2025

SVEN AP-B710MV WIRELESS HEADSET — COMFORT THAT CAN BE HEARD

The new SVEN AP-B710MV model continues the series of stylish and comfortable overhead headphones, which have gained well-deserved recognition of users for perfectly balanced combination of design, quality and functionality while maintaining affordable price.

Details >>
11.07.2025

SVEN 190 SPEAKER SYSTEM — MAXIMUM SOUND AT MINIMUM DIMENSIONS

We continue to expand our product family of ultra-compact speaker systems 2.0 designed for small spaces. The new SVEN 190 multimedia speakers seamlessly combine a stylish design, compactness, and a comprehensive set of features.

Details >>

SVEN RESERVE HOME uninterrupted power supplies developed and produced by SVEN Company are the ideal solution for the uninterrupted power supply for heating systems, intellectual fire-control units and security systems, automation and refrigeration systems, etc. in conditions of low quality level of power supply or in case of its complete absence.

They are designed for equipment, which is critical to the input current form: gas boilers, refrigeration equipment, devices with electric motors, compressors, transformers, etc., where UPS with clear output sinusoid is required.

SVEN RESERVE HOME line-interactive uninterrupted power supplies with a proper sinusoid in combination with batteries SVEN SV12500 and SVEN SV121000 are the optimal and universal choice to create the uninterrupted power supply system based on the price, consumer properties, coefficient of efficiency and battery service life.

Notice! Batteries are not included.
