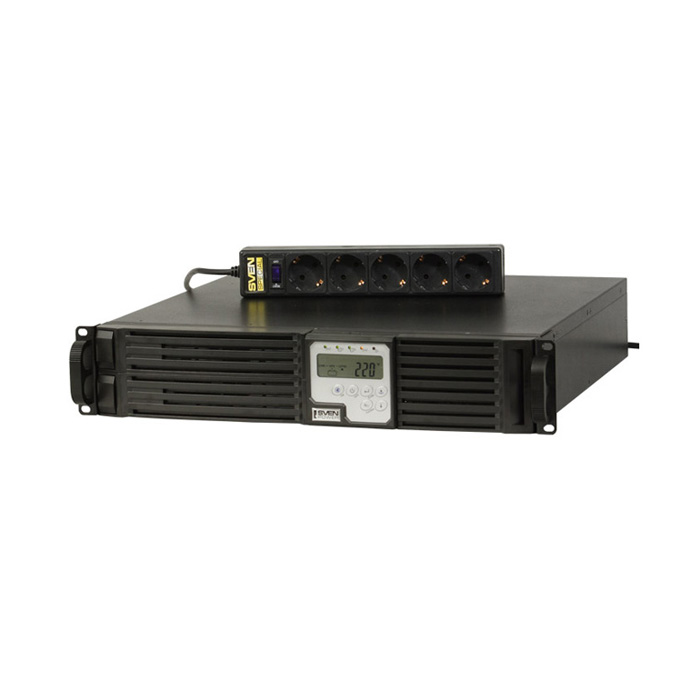

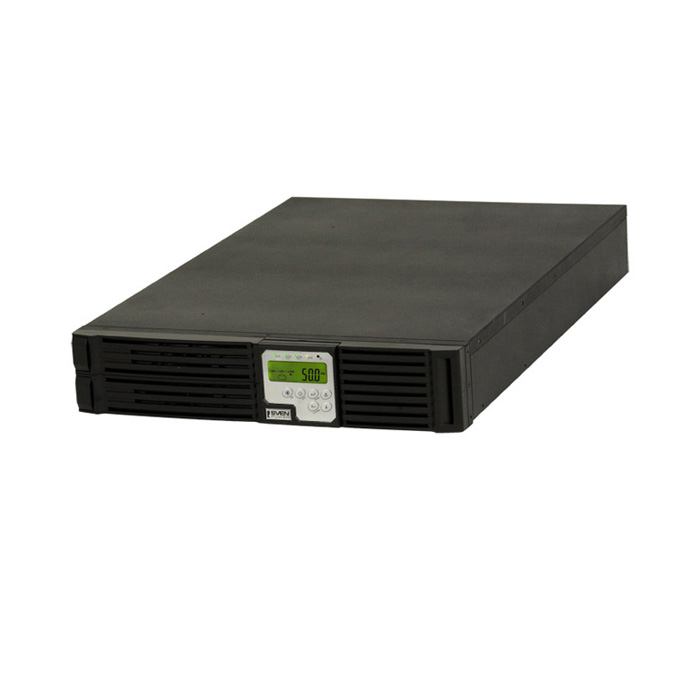

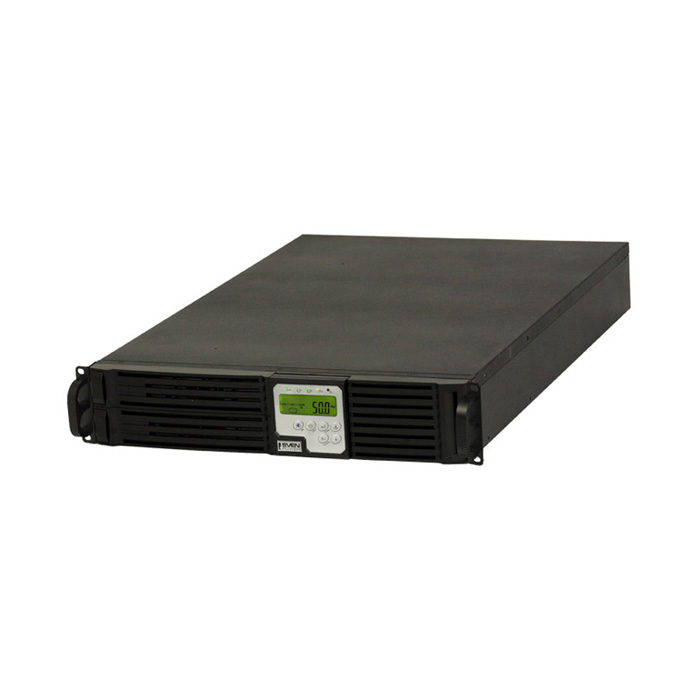

SVEN Power Smart RM 2U L LCD 3000
SVEN Power Smart RM 2U L LCD 3000
Short product description:
- High efficiency
- Zero time switch from standby to off-line operation mode, th...
- Wide range of auto voltage regulation (АVR)
- Nominal output voltage adjustable by the user
SVEN Pro 400
SVEN Pro 600
SVEN Pro 650 (LCD, USB)
SVEN Pro 800
SVEN Pro 1000 (USB)
SVEN Pro 1500 (LCD, USB)
SVEN UP-L800
SVEN UP-L1000E
SVEN RT-500
SVEN RT-1000
-
FEATURES
-
SPECIFICATIONS
-
DESCRIPTION
-
UNBOXING VIDEO
-
SUPPORT
- High efficiency
- Zero time switch from standby to off-line operation mode, the sinusoid shape doesn’t break off and doesn’t distort
- Wide range of auto voltage regulation (АVR)
- Nominal output voltage adjustable by the user
- Digital microprocessor control

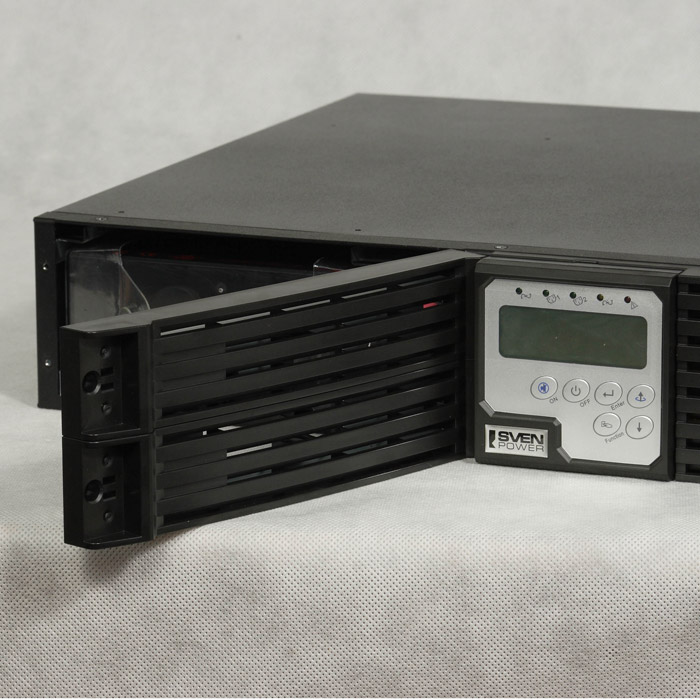

- LCD indication of basic operation modes, values of input and output parameters
- Vertical, horisontal placement (Rack/Tower)
- 2U rack mounting
- Sine output voltage
- Cold Start function at DC power supply
- USB and RS-232 communication port
- High degree of consumed current shape correction provides full suppression of interferences and distortions in the supply mains
- Power delivery renewal mode provides its automatic supply both after a short-time power switch-off and after long-time absence of power supply
- Automatic switch to Bypass mode at overload and automatic returning to Online mode at load reduction to the allowed level
- Two output sockets with programmable switch-off
- Separate circuit breaker for each socket
- Input circuit breaker for protecting from overload and short-circuit
- EPO port available for remote emergency switch-off
- UPS and rechargeable battery system self-testing mode

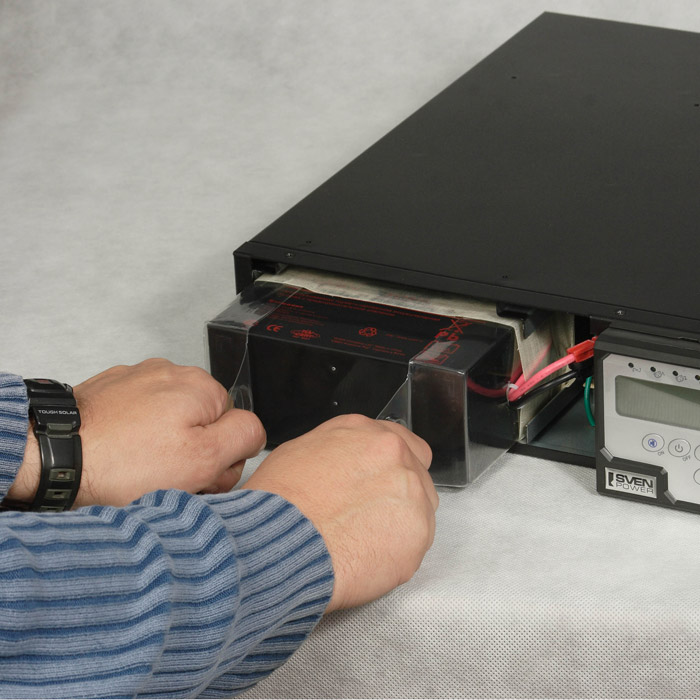

- Possibility of connection of additional rechargeable batteries
| Maximum load, VA/W | 3000/2100 |
| Input voltage level, V | 120-288 |
| Output voltage level, V | 220 ± 1 % (on-line/off-line), possiblr setting to 220/208/220/230/240 |
| Output voltage waveform | sine wave (on-line), sine wave (off-line), total harmonic distortion < 3% |
| Frequency, Hz | 50/60 |
| Communication port | USB, RS-232, EPO |
| Input terminals | 10 A, IEC 320-C14 |

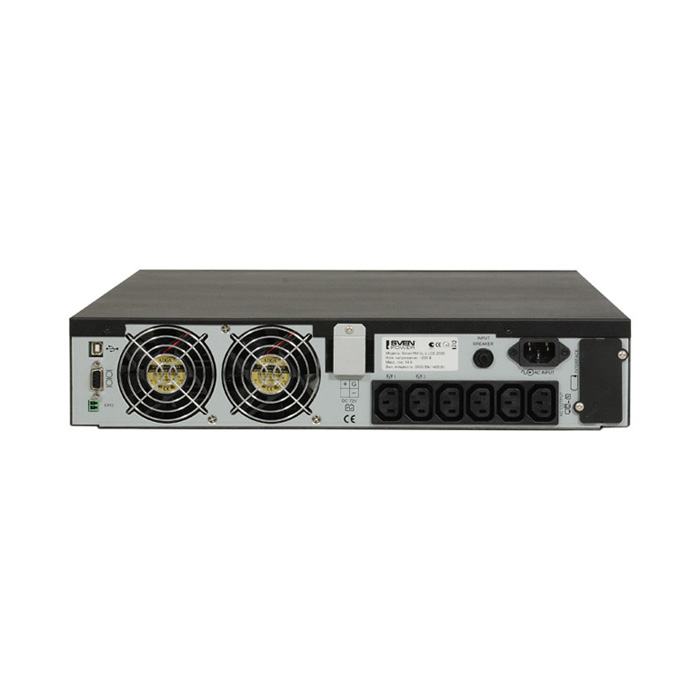

| Output sockets | (4) 10 A, IEC 320-C13 + (1) 16 A, IEC 320-C19 |
| Protection | from high input current, short circuit, overload, lightning stroke, voltage surges, falls, brownouts, blackouts |
| Alarm signals | < 45 dB at a distance of 1 meter |
| Accumulator type | maintenance-free sealed lead-acid batteries (consumables) |
| Accumulators capacity | 12 V х 9 А h (6 pieces) |
| Typical switching time, ms | 0 (Online) |
| Batteries operation time, min | 5/12 (full load/half load ) |
| Indicators | LCD indication of basic operation modes, values of input and output parameters, battery capacity |
| Processor | RISC-microprocessor based |
| Controlled variable | current input and output voltage, frequency, output power, battery condition |
| Environment operation conditions | 0-40 °C moisture 0 - 90% without condensation |
| Supported interfaces | intelligent software support of Win Mе/NT/2000/XP/Vista/Novell NetWare, Linux |
| Certificates | CE,UL, cUL, FCC |
| Floating time | 4 hours up to > 90% |
| Dimensions (W × H × D), mm | 650 x 440 x 88(2U) |
| Weight, kg | 29.8 |
| Life time | 5 years |
