SVEN Power Smart L 1000
SVEN Power Smart L 1000
Short product description:
- High efficiency
- Zero time switch from standby to off-line operation mode, th...
- Wide range of auto voltage regulation (АVR)
- Nominal output voltage adjustable by the user
SVEN Pro 400
SVEN Pro 600
SVEN Pro 650 (LCD, USB)
SVEN Pro 800
SVEN Pro 1000 (USB)
SVEN Pro 1500 (LCD, USB)
SVEN UP-L800
SVEN UP-L1000E
SVEN RT-500
SVEN RT-1000
-
FEATURES
-
SPECIFICATIONS
-
DESCRIPTION
-
UNBOXING VIDEO
-
SUPPORT
- High efficiency
- Zero time switch from standby to off-line operation mode, the sinusoid shape doesn’t break off and doesn’t distort
- Wide range of auto voltage regulation (АVR)
- Nominal output voltage adjustable by the user
- Digital microprocessor control

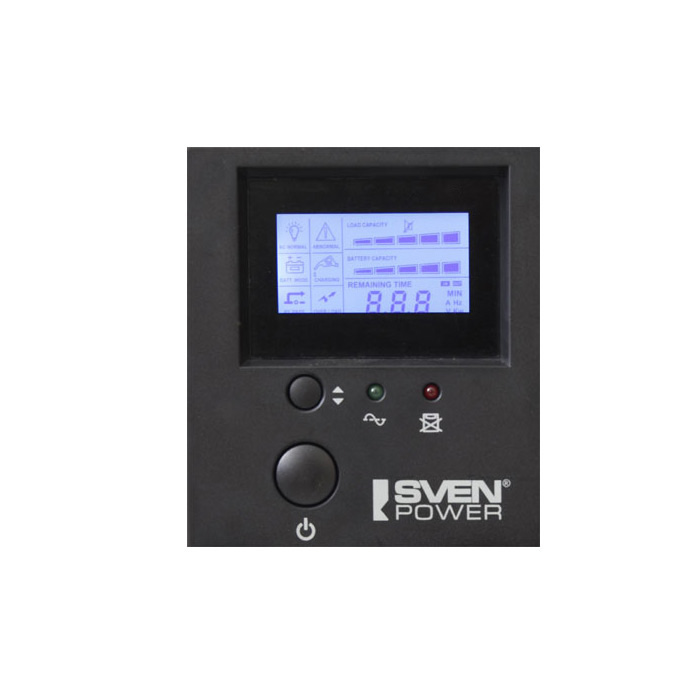

- LED indication of basic operation modes, values of input and output parameters
- Option of switch-off of off-line operation mode sound signal by pressing a button on the front panel
- Sound alarm at critical discharge level of storage batteries (without switch-off option)
- Sine output voltage
- Cold Start function at DC power supply
- RS-232 communication port
- High degree of consumed current shape correction provides full suppression of interferences and distortions in the supply mains
- Power delivery renewal mode provides its automatic supply both after a short-time power switch-off and after long-time absence of power supply
- Active cooling system with two-stage function of setting the fan rotation speed, which automatically determines the optimal cooling mode
- The lowest acoustic noise level is achieved at low and medium loading
| Maximum load, VA/W | 1000/700 |
| Input voltage level, V | 160-286 |
| Output voltage level, V | 220 ± 0.5 % (on-line/off-line), ability to set the level to 200/220/230/240 |
| Output voltage waveform | sinusoid; harmonic content < 3% (on-line/off-line) |
| Frequency, Hz | 50/60 (determined automatically) |
| Communication port | RS-232, Standard DB9 SNMP (optionally) |
| Input terminals | IEC 320 |
| Output sockets | sockets IEC 320 (3 pieces.), 1 EURO socket |
| Protection | from high input current, short circuit, overload, lightning stroke, voltage surges, falls, brownouts, blackouts |
| Alarm signals | 45 dB beeps at a distance of 1 meter |
| Accumulator type | maintenance-free sealed lead-acid batteries (consumables) |
| Accumulators capacity | 12 V, 7 А (3 pieces) |
| Typical switching time, ms | 0 (on-line mode) |
| Batteries operation time, min | 8/20 (full load/half load ) |
| Indicators | connected load level, batteries charge level, operating modes |
| Processor | RISC-microprocessor based |
| Controlled variable | current input and output voltage, frequency, output power, battery condition |
| Environment operation conditions | <2 000 m above sea level, 0-40 °C, moisture 0 - 90% without condensation |
| Supported interfaces | intelligent software support of Windows 95/98/9X/Mе/NT/2000/XP/Vista/Windows server 2003/Novell Netware/Linux/FreeBSD |
| Certificates | UL. cUL, FCC, [CE,TUV] РосТест |
| Floating time | 4 hours (up to >85 %), 10 hours max (up to >90 %) |
| Dimensions (W × H × D), mm | 401 x 223 x 147 |
| Weight, kg | 14 |
| Life time | 5 years |
